FDSStick (256M version)

$31.99

FDSStick

  • It's a Famicom Disk System (FDS) drive emulator.
  • Write games to FDSStick over USB, then connect to a FDS RAM adapter to play.
  • Contains 256Mbit internal flash. Enough space to hold every FDS game and more!
  • Loads a built-in game menu on startup.
  • Push the button to change disk sides (once for side A, twice for side B, etc.) or hold to eject.
  • Game Doctor disk format is fully supported.
  • Firmware is upgradable over USB.
  • Holds 512 disk sides with a built-in game selection menu.
  • Write games to FDSStick over USB, then connect to a FDS RAM adapter to play.
  • Push the button to change disks (once for side A, twice for side B, etc.) or hold to eject.
  • Connect both sides of FDSStick to run games directly from a PC.

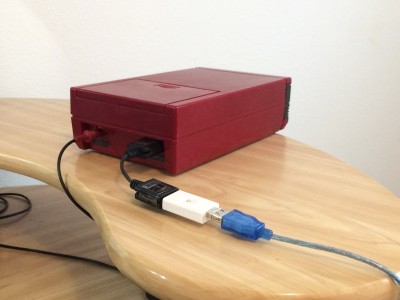

  • Read and write disks from an FDS drive with an adapter cable (not included).




For USA customer go here :


Windows app (last update 26 Sept 2016) Changelog

How to make Adapter Cable

You need 3206 modchip if your fds drive has 3206 chip inside.
You can buy it here

For disk reading and writing, join two RAM adapter cable ends together. Nintendo RGB cables (for SNES / N64 / Gamecube) can also be used, you'll need to cut the bumps off them to make them fit.

     ################
  ###################
  ###  C   A   8   6   4   2  ###
  ###                              ###
  ###  B   9   7   5   3   1  ###
  ###################
  ###################

      End of RAM adapter cable

  Join pins 1, 2, 3, 4, 5, 9, B, C from one connector to the other.
  Leave the other pins unconnected.


Twin Famicom

Use this pin mapping for connecting FDSStick to a Twin Famicom.

           Twin Famicom Port C                          End of RAM adapter cable
        (looking at rear of console)                   ################
##########################   ###################
##########################   ###  C   A   8   6   4   2  ###
##                                                   ##   ###                              ###
## 12 11 10  9  8  7  6  5  4  3  2  1   ##   ###  B   9   7   5   3   1  ###
##########################   ###################
##########################   ###################

Twin Famicom     RAM Adapter        Other end of RAM adapter cable
  Port C            (blue connector to cart)

    1    --------------    A    ------------   10 (black)
    2    --------------    C    ------------    7  (violet)
    3    --------------    B    ------------    9  (white)
    4    --------------    9    ------------    4  (yellow)
    5    --------------    7    ------------    8  (grey)
    6    --------------    5    ------------    3  (orange)
    7    --------------    3    ------------    6  (blue)
    8    --------------    1    ------------    5  (green)
    9    --------------    4    ------------    1  (brown)
    10  --------------    2    ------------   12 (cyan)
    11  --------------    6    ------------   11 (pink)
    12                        8                        2  (NC)
