Super Flasher

Super Flasher 95/98/Me/XP/2000 version 2.1

It have 7 major function parts on this application program:-

• Write Program from PC to Flash area.

• Backup Program from Flash area to PC.

• Write Data/Information from PC to RAM area.

• Read Data/Information from RAM area to PC.

• Backup Program from cartridge to PC.    * Not Support SuperFx / RISC DSP / SA-1 chipset *

• Write Data/Information from PC to cartridge RAM area.

• Read Data/Information from cartridge RAM area to PC.

This Program Feature

• Upload Program from PC to Flash area.

• Backup Program from Flash area to PC.

• Read/Write Data/Information between PC and RAM area.

• Backup Program from cartridge to PC.

• Write Data/Information from PC to cartridge RAM area.

• Read Data/Information from cartridge RAM area to PC.

• Automatic append Multi-game header due to multi game selection.

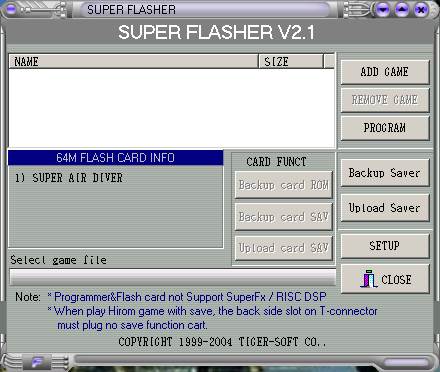

Button Function

 PROGRAM button: Program Single/Multi Games to Flash area.

Backup Saver button: Read RAM Data from Flash Card RAM area to PC.

Upload Saver button: Write RAM Data from PC to Flash Card RAM area.

Backup card ROM button: Backup program & Data from cartridge area to PC.

Backup card SAV button: Read Data from cartridge RAM area to PC.

Upload card SAV button: Write Data from PC to cartridge RAM area.

SETUP button: If choose this button, the configuration window will opened,
   you can change program setting.
include :
             - Multi-game Header File path,
               * You could chose SFBOOTX.GS file for run on console.
             - ROMS directory path
             - SAVERS directory path
             - Printer/Parallel Ports I/O

CLOSE button: Exit this application program.

ADD GAME button: This button use to Add one Game/Program item to list wait for program.

REMOVE GAME button: delete Selected item from the list.
　

Create a single game item

1) Choose One game item on left table window when Click ADD GAME button.
2) Click PROGRAM button and write game to flash card.
　

Create a Multi-games item

1) Choose One game item on left table window when Click ADD GAME button.

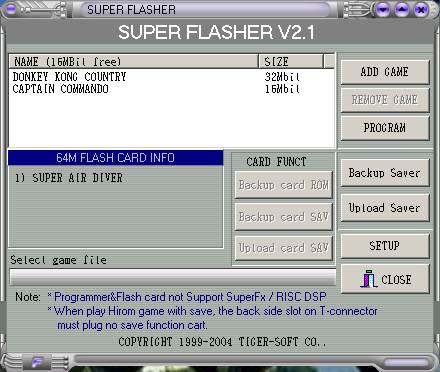

2) Repeat step 1, if want to add more games. Please make sure enough free space on card. show below

3) After complete all items select, Click PROGRAM button and write game to flash card.

4) Write Card complete.

Backup Data from Flash Card Saver

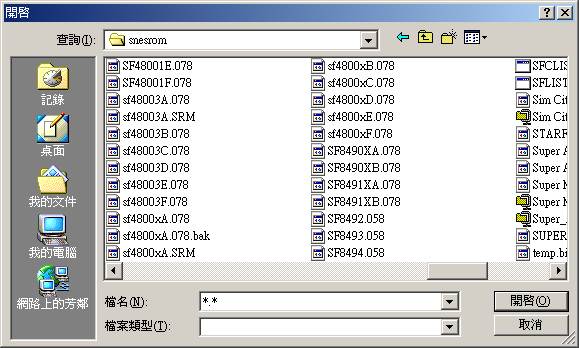

1)  choose a new file name to save.
2)  select Saver size show below, and click OK to begin process.

Upload Data to Flash Card Saver area

 1)  choose a *.SRM file name to upload.
 2)  click OK to begin process.

Backup cartridge  to PC.

 1)  choose a new *.SMC file name to backup.
 2)  click OK to begin process.

Backup Data from cartridge Saver

1)  choose a new *.SRM file name to save.
2)  click OK to begin process.

Upload Data to cartridge saver area

 1)  choose a *.SRM file name to upload.
 2)  click OK to begin process.
